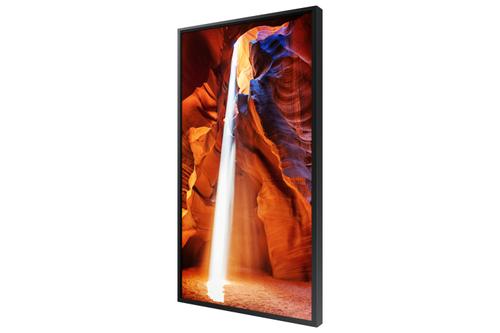

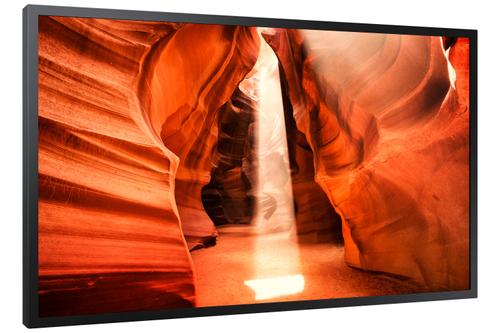

Name: SAMSUNG - 46" OM46N, High brightness, FULL HD, 4000 cd/m2
Brand: SAMSUNG
SKU: 10466772
Availability: PreOrder

SAMSUNG 46" OM46N, High brightness, FULL HD, 4000 cd/m2

Varenr.:

LH46OMNSLGB/EN

EAN:

8801643558024

Skærmstørrelse 46"
Opløsning 1920 x 1080
HD Fuld HD
USB-C 0
DVI 0
DP 1
HDMI 2
Berøringsskærm Nej
Højttalere Nej
Skærmform Flad
Højdejustering Nej
Drejbar Nej
Pivot Ja
Anvendelsesområde Digital signage

OM46N

Promote content with exceptional clarity in any storefront window

Features:

Ultra-high brightness emphasizing content, regardless of the lighting conditions
Slim and contemporary design that seamlessly integrates into any display window
Easy content management with a built-in management solution

Specifications:

Panel

Diagonal Size46"
TypeE-LED BLU
Resolution1920*1080 (Full HD)
Pixel Pitch(mm)0.530 x 0.530
Active Display Area(mm)1018.08(H) x 572.67(V)
Brightness(Typ.)4000 nit
Contrast Ratio5000:1
Viewing Angle(H/V)178/178
Response Time(G-to-G)6ms
Display Colors8 bit - 16.7M
Color Gamut72%
Haze0%

Display

Dynamic C/R100,000:1
H-Scanning Frequency30 ~ 135kHz (DP), 15 ~ 135kHz (HDMI)
V-Scanning Frequency30 ~ 75Hz (DP), 24 ~ 75Hz (HDMI)
Maximum Pixel Frequency533.25MHz (DP), 594MHz (HDMI)

Sound

Speaker TypeN/A

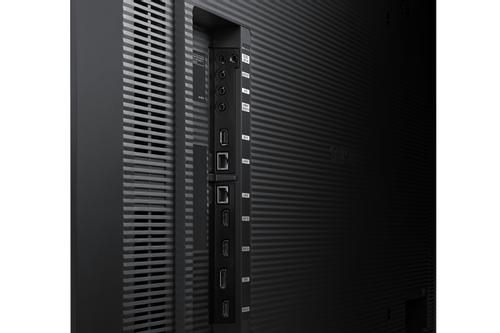

Connectivity

Input

RGBDisplay Port 1.2 (1)
VideoHDMI2.0 (2)
HDCPHDCP 2.2
AudioN/A
USBUSB 2.0 (1)

Output

RGBHDMI 2.0
VideoYes
AudioStereo Mini Jack
Power OutN/A
External ControlRS232C (In/Out), RJ45 (In/Out)
External SensorDetachable Type (IR, Ambient)
TunerN/A

Power

TypeInternal
Power SupplyAC 100 - 240 V~ (+/- 10 %), 50/60 Hz

Power Consumption

Max[W/h]350
Typical[W/h]W/W(EU) : 210US/KOR/Etc : 330? Etc: CHINA, TAIWAN, BRA, CIS
BTU(Max)1194
Sleep mode0.5W
Off mode0.5W

Mechanical Specification

Dimension (mm)

Set1062 x 616.6 x 54.5 mm
Package1189 x 757 x 158 mm

Weight (kg)

Set18.2kg
Package23kg

VESA Mount (mm)400 x 400 mm
Mounting HoleN/A
Protection GlassN/A
Stand TypeN/A
Media Player Option TypeN/A
Bezel Width (mm)19.9 (even)

Operation

Recommended Usage Hours24/7
Operating Temperature 0?~ 30? (Direct Sunlight) 0?~ 40? (w/o Direct Sunlight)
Humidity 10 % ~ 80 %

Feature

Key FeaturesHigh brightness Semi-Outdoor Slim & Clean back designBuilt-in MagicInfo Player S6, SSSP 6.0

Special Features IP 5X rated, Polarized Sun Glasses Viewable in any direction, Portrait /Landscape Installation Support, Lamp Error Detection, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping)

Internal Player

ProcessorCoretex A72 1.7GHz Quad-Core CPU
On-Chip Cache MemoryL1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
Clock Speed1.7GHz
Main Memory Interface2.5GB LPDDR4 1.5GHz 64bit

GraphicsGraphic resolution : 1920x1080 Output resolution : up to 3840x2160 (Scale up from graphic processing result.) - Supports OpenGL ES
Storage (FDM)8GB (3.88GB Occupied by O/S, 4.12GB Available)
MultimediaVideo Decoder - MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC - VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder - AC3 (DD), MPEG
IO PortsUSB 2.0

Operating SystemTizen 4.0 (VDLinux)

Certification

SafetyCB (Europe) : IEC60950-1/EN60950-1 UL(USA) : cUL60950-1
EMCFCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003

Accessory

IncludedQuick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, IR, Ambient sensor

Optional

StandN/A
Mount N/A
SpecialtyN/A

Media Player

Media PlayerN/A

Display

Skærm diagonal

116,8 cm (46")

Skærmteknologi

LED-baggrundsbelysning type

Edge-LED BLU

Skærmopløsning

1920 x 1080 pixel

Skærmens lysstyrke

4000 cd/m²

HD-type

Fuld HD

Berøringsskærm

Nej

Naturligt aspektforhold

16:9

Responstid

6 ms

Kontrastforhold (typisk)

5000:1

Synsvinkel, horisontal

178°

Synsvinkel, vertikal

178°

Vis antal farver

16,78 millioner farver

Pixel pitch

0,53 x 0,53 mm

Aktiv skærmområde (B x H)

1018,08 x 572,67 mm

Skærm diagonal (metrisk)

116,8 cm

Horisontal scanningsområde

15 - 135 kHz

Vertikalt scanningsområde

24 - 75 Hz

Tågehastighed

Porte & Grænseflader

Antal HDMI-porte

HDMI-version

2.0

Antal HDMI-indgangsporte

Antal HDMI-udgangsporte

DVI-port

Nej

VGA (D-Sub) indgangsporte

Antal DisplayPorts

DisplayPorts indgang

USB-port

Antal USB-porte

USB version

2.0

Ethernet LAN

Ethernet LAN-porte (RJ-45)

Wi-Fi

Nej

RS-232C

Fjernbetjening (IR) indgang

PC-lydudgang

Lyd

Indbyggede højttaler(e)

Nej

Design

Produktdesign

Digital fladpaneldisplay

Produktfarve

Sort

Understøttet placering

Indendørs

Orientering

Horisontal/vertikal

VESA montering

Panel montering grænseflade

400 x 400 mm

Præstation

Formål

Detail

Sensor for omgivende lys

Driftstimer (timer/dage)

24/7

HDCP

Kode for international beskyttelse (IP)

IP5X

HDCP-version

2.2

Strømstyring

Strømforbrug (standby)

0,5 W

Strømforbrug (slukket)

0,5 W

Energieffektivitetsklasse (SDR)

Energiforbrug (SDR) pr. 1000 timer

231 kWh

Vekselstrømsindgangsspænding

100 - 240 V

Vekselstrømsindgangsfrekvens

50 - 60 Hz

Computersystem

Indbygget processer

Processorserie

ARM Cortex

Processormodel

A72

Processorfrekvens

1,7 GHz

Processorkerner

Intern hukommelse

2,5 GB

Intern lagerkapacitet

8 GB

Operativsystem installeret

Tizen 4.0

Understøttede videoformater

AVC, AVS+, H.263, H.264, HEVC, MPEG1, MPEG2, MPEG4, VC-1, VP8, VP9

Understøttede lydformater

MPEG, AC3

Understøttede billedformater

JPEG, PNG

Vægt & størrelser

Bredde

1062 mm

Dybde

54,5 mm

Højde

616,6 mm

Vægt

18,2 kg

Emballeringsdata

Pakkebredde

1189 mm

Pakkedybde

158 mm

Pakkehøjde

757 mm

Pakkevægt

23 kg

Emballage indhold

Fjernbetjening inkluderet

Batterier inkluderet

Kabler inkluderet

Vekselstrøm

Driftsbetingelser

Driftstemperatur (T-T)

0 - 40 °C

Relativ luftfugtighed ved drift (H-H)

10 - 80%

Godkendelser

Certificering

EMC - Class A. 60950-1

Logistik data

Harmoniseret systemkode (HS)

85285210
