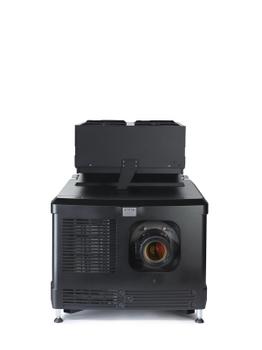

BARCO DP4K-17BLP Alchemy 3x2TB


Smart Laser cinema projector for screens between 13-18m

The DP4K-17BLP delivers consistent, razor-sharp, and high-contrast images with native 4K resolution and 17,000 lumens brightness. It's perfectly suited for mid-size movie screens ranging from 13 up to 18 meters (43 up to 59 feet).

Reduced total cost of ownership

Eliminating all lamp-related costs, the DP4K-17BLP provides a very attractive TCO. Thanks to its unique cooling system, the projector boasts a 30,000-hour constant brightness at typical usage conditions. Its significantly higher optical efficiency results in electricity bill savings of up to 40%.

Unprecedented ease of mind

The DP4K-17BLP cuts operating expenses, reduces operational complexity, and optimizes labor cost. The projector increases your uptime and frees you from all lamp-related costs, administration, and maintenance.

Superior image quality

The DP4K-17BLP offers consistent DCI-compliant image quality with native 4K resolution, outstanding uniformity, and higher contrast on white and silver screens. Its light output can be dimmed to 30% of the initial brightness, enabling 2D and 3D showings from the same projector.

Retrofit ready

If you already own a Barco B-series projector you can replace your current lamp house with the unique laser phosphor retrofit module through an easy on-site upgrade.

  • Laser phosphor light source
  • Up to 18m screen size
  • Up to 17,000 lumens light output
  • modular system architecture


Brightness 17,000 lumens (typical)
Native contrast ratio 2,000:1 (typical)
Prime lenses 1.13-1.72; 1.35-1.86; 1.46-2.10; 1.65-2.60; 1.95-3.26; 2.53-4.98
Resolution 4,096 x 2,160
Long-term brightness stability 30,000 hrs @ average usage conditions
Dimensions (WxLxH) Projector: 754 x 1,129 x 604 mm / 29.69 x 44.5 x 23.78 inches
Cooler: 561.5 x 738.5 x 348 mm / 22.11 x 29.07 x 13.7 inches
Weight Projector: 144kg (318 lb)
Cooler: 32kg (70.6 lb)
Cooling liquid hose length 4 hoses; 0.5m, 2.5m, 5m, and 8m (1.6ft/8.2ft/16.4ft/26.2 ft)
Vertical separation between cooler and projector Maximum 3m (10ft) (higher or lower)
Power requirements Projector: single phase 200-240V 15A
Cooler: obtains power from the projector
Heat load (max. power) 7526 BTU/h
Ambient temperature 35°C (95°F) Max. (projector and cooler)
Ambient humidity 85% Max. (projector and cooler)
Power consumption Projector (incl. cooler): 2.4 kW
Media server Barco Alchemy ICMP and other IMB brands supported.
Noise Level dB(A) @ 1 m:
67.6 dB(A)
62 dB(A) (half fan speed)
3D systems Active glasses systems and polarization systems on silver sceens are supported. Color separation systems (Dolby3D and 6P) are not supported.
Safety requirements Class 1 risk group 3
Show safety: the customer shall take precaution for the laser safety (respect the hazard distance and separation height) according to local laser show safety regulations.
Workplace safety: the customer shall take precaution for:
  • workplace safety as prescribed by the local authorities
  • basic laser safety training for operators
  • laser safety program implementation in the company;
  • access limitation only to trained personnel: area labelling, etc.
