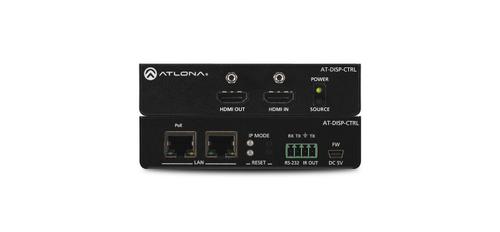

Atlona 4K/UHD HDMI Display Controller
|
Display Controller
AT-DISP-CTRL
The Atlona AT-DISP-CTRL is a compact display controller, designed for small meeting spaces and huddle rooms. The DISP-CTRL detects connection of a source device with an active signal, and then automatically sends a control command to power up a display. Similarly, when the device is disconnected, the DISP-CTRL delivers a command to power down the display. The DISP-CTRL can be configured to deliver pre-stored or user-programmed display control commands through TCP/IP, RS-232, IR, or CEC. Additionally, this controller includes EDID and HDCP management features, and can be powered locally or through Power over Ethernet (PoE). The DISP-CTRL is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps.
The DISP-CTRL enables simple plug-and-play operation for a presenter – while eliminating the need to rely on a handheld remote control that is often misplaced or non-functional (dead batteries). The DISP-CTRL can be used on its own, or in conjunction with an HDMI switcher such as the JunoX™ 451 (AT-JUNO-451). The AT-IR-CS-TX emitter cable is available for controlling a display through IR. For additional integration convenience, the DISP-CTRL features adjustable standby and lamp cooldown timer modes, TCP/IP and RS-232 control, and remote management with Atlona Management System (AMS). A comprehensive selection of display drivers from the Velocity™ Control System driver database is available for setting IR, RS-232, or IP control commands.
Features:
- Simple, automated display control via IP, RS-232, IR, or CEC
- Programmable display control modes
- 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
- Local or PoE (Power over Ethernet) powering
- Comprehensive display driver selection from the VelocityTM Control System database
- Dual Ethernet ports and integrated network switch
Specifications:
| Video |
| HDMI | HDMI 2.0, HDCP 2.2 |
| UHD/HD/SD | 4096×2160 @ 60/30/25/24 Hz
3840×2160 @ 60/30/25/24 Hz
1920x1080p @ 60/59.9/50/30/29.97/25/24/23.98 Hz
1920x1080i @ 60/59.94/50 Hz
1280x720p @ 60/59.94/50 Hz | 720x576p @ 50 Hz
720x576i @ 50 Hz
640x480p @ 60/59.96 Hz
640x480i @ 60 Hz |
| VESA | 2560×1600 @ 60 Hz
2048×1536 @ 60 Hz
1920×1200 @ 60 Hz
1680×1050 @ 60 Hz
1600×1200 @ 60 Hz
1440×900 @ 60 Hz
1400×1050 @ 60 Hz
1280×1024 @ 60 Hz | 1280×800 @ 60 Hz
1366×768 @ 60 Hz
1360×768 @ 60 Hz
1152×864 @ 60 Hz
1024×768 @ 60 Hz
800×600 @ 60 Hz
640×480 @ 60 Hz |
| Color Space | YUV, RGB |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| HDR | HDR10, Hybrid-Log Gamma (HLG), and Dolby® Vision™ @ 60Hz |
| Audio |
| Pass-Through Formats | PCM 2.0
LPCM 5.1
LPCM 7.1 | Dolby® Digital
Dolby Digital Plus™
Dolby TrueHD
Dolby Atmos® | DTS® Digital Surround™
DTS-HD Master Audio™
DTS:X® |
| Sample Rate | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
| Bit Rate | 24 Mbps max |
| Protocols |
| Supported | HTTP, Telnet |
| Addressing | DHCP, static |
| Control |
| RS-232 | Device control and configuration; supports baud rates from 2400 to 115200 |
| IP | Device control and configuration |
| IR | Device control and configuration |
| CEC | Device control and configuration |
| Connectors |
| HDMI IN | 1 – Type A, 19-pin female |
| HDMI OUT | 1 – Type A, 19-pin female |
| LAN(1) | 2 – RJ45, 10/100/1000 Mbps |
| RS-232 | 1 – 3-pin captive screw (bidirectional) |
| IR OUT | 1 – 3.5 mm, unbalanced 2-channel |
| DC 5V | 1 – mini USB |
| Controls and Indicators |
| IP MODE, RESET | 2 – momentary, tact-type |
| PWR indicator | 1 – LED, green |
| LINK indicator | 1 – LED, yellow |
| Resolution / Distance | 4K/UHD – Feet / Meters | 1080p – Feet / Meters |
| HDMI IN/OUT | 15 | 5 | 30 | 10 |
| Signal |
| Maximum TMDS Clock | 600 MHz |
| Power |
| PoE | IEEE 802.3af |
| Total power consumption | 5.3 W |
| External Power (optional) | 5 V, 500 mA (USB) |
| Environmental |
| Operating Temperature | +32 to +122 °F
0 to +50 °C |
| Storage Temperature | -4 to +140 °F
-20 to +60 °C |
| Operating Humidity (RH) | 20% to 95%, non-condensing |
| Chassis |
| Dimensions (H x W x D) | 1.02 in x 4.29 in x 3.50 in
26 mm x 109 mm x 89 mm |
| Weight | 0.65 lbs
0.30 kg |
| Safety | CE, FCC, RoHS |
(1)Maximum distance per hop 330 ft (100 m), depending upon network configuration.
